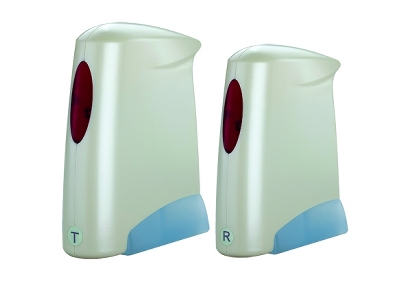

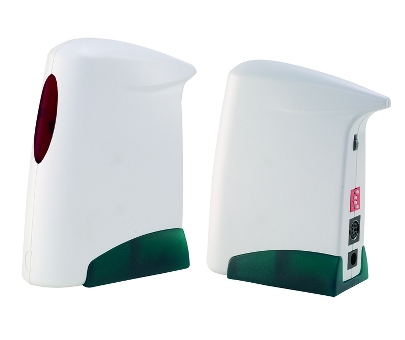

ProA/V 5.8GHz Wireless Media Extender

ProA/V 5.8GHz Wireless Media Extender
ProA/V 5.8GHz Wireless Media Extender
Item# 06-081-001-08
$199.95

ProA/V 5.8GHz Wireless Media Extender

Turns any Audio/Video Multimedia output device into a
Wireless Audio Video Transmission System!

The AITech ProA/V 5.8GHz Wireless Media Extender adopts the newest in wireless A/V transmission technology to send audio and video signals throughout your home or office using the newest 5.8GHz wireless frequency band. Enjoy your favorite TV programs, DVD Movies, Music CD's MP3 Files, or listen to Stereo Hi-Fi in your home or office without any interference from 2.4GHz wireless devices or unnecessary cables!

The ProA/V 5.8GHz Wireless Media Extender allows the user the flexibility to connect the transmitter to any composite A/V output device: PC, DVD player, CD player, VCR, camcorder, CMOS security Camera, TiVo Box, satellite receiver, cable TV box, projector, PC with composite video-out, AITech scan converter, or to any other device that outputs an RCA/Composite Audio/Video signal!

Another outstanding feature of the ProA/V 5.8GHz Wireless Media Extender is its ability to use the remote control of the device it connects to. The built-in IR Extender wirelessly transmits the IR Signal from your VCR's, DVD Player's, or other device's hand held remote control, from the receiver side of the system back to your video source.

ProA/V 5.8GHz Wireless Media Extender



Features

  • 5.8GHz wireless transmitter and receiver with 8 selectable channels
  • 433.92MHz infrared control radio return feature
  • Antenna (5.8GHz) are embedded into housing
  • Compatible with Camcorder or CMOS camera application
  • Low power consumption
  • NTSC/PAL video format
  • Range up to 300 feet line of sight.  Range in typical homes is 100 feet.
  • Ideal for location that have other wireless devices nearby.
  • Receives no interference from microwave ovens, 802.11b+g wireless networking equipment or any other 2.4GHz wireless devices.

Specifications

Transmitter

Frequency 5725MHz~5865MHz
Sender Power 17dBmTypical
Channel Number
8
Frequency Stability �100 KHz Typical
A/V Input Composite RCA
Video Input Level 1 Vp-p Typical
Audio Input Level 1 Vp-p Typical
Supply Voltage
9V
Current Consumption 500 mA Typical
Dimension
148Dx126Wx 41H (Units in mm)
Operating Temperature 10~ +60
Infrared Remote Control Radio Return Frequency 433.92MHz
Transmission Power
-100dBm

Receiver

Frequency 5725MHz~5865MHz
Receiver Sensitivity -85dBm Minimum
Channel Number
8
Frequency Stability �100 KHz Typical
A/V Output Composite RCA
Video Input Level 1 Vp-p Typical
Audio Input Level 1 Vp-p Typical
Supply Voltage
9V
Current Consumption 500 mA Typical
Dimension
148Dx126Wx 41H (Units in mm)
Operating Temperature 10~ +60
Sensitivity 10dBmTypical

Package Contents

Transmitter x 1
Receiver x 1
RCA video/audio cable x 2
Power adapter :x 2
User's manual x 1

Warranty:
One Year

AITech Part #:
06-081-001-08
